• Wheels, 17" (43.2 cm) steel includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• Tires, LT245/75R17E all-season, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Bumper, front chrome
• CornerStep, rear bumper (Requires (E63) pickup box.)
• Bumper, rear chrome with bumper CornerSteps (Requires (E63) pickup box.)
• Grille surround, chrome
• Headlamps, halogen projector
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside manual, Black
• Glass, solar absorbing, tinted
• Door handles, Black
• Tailgate and bed rail protection caps, top
• Tailgate, locking, utilizes same key as ignition and door (Deleted with (ZW9) pickup box delete.)

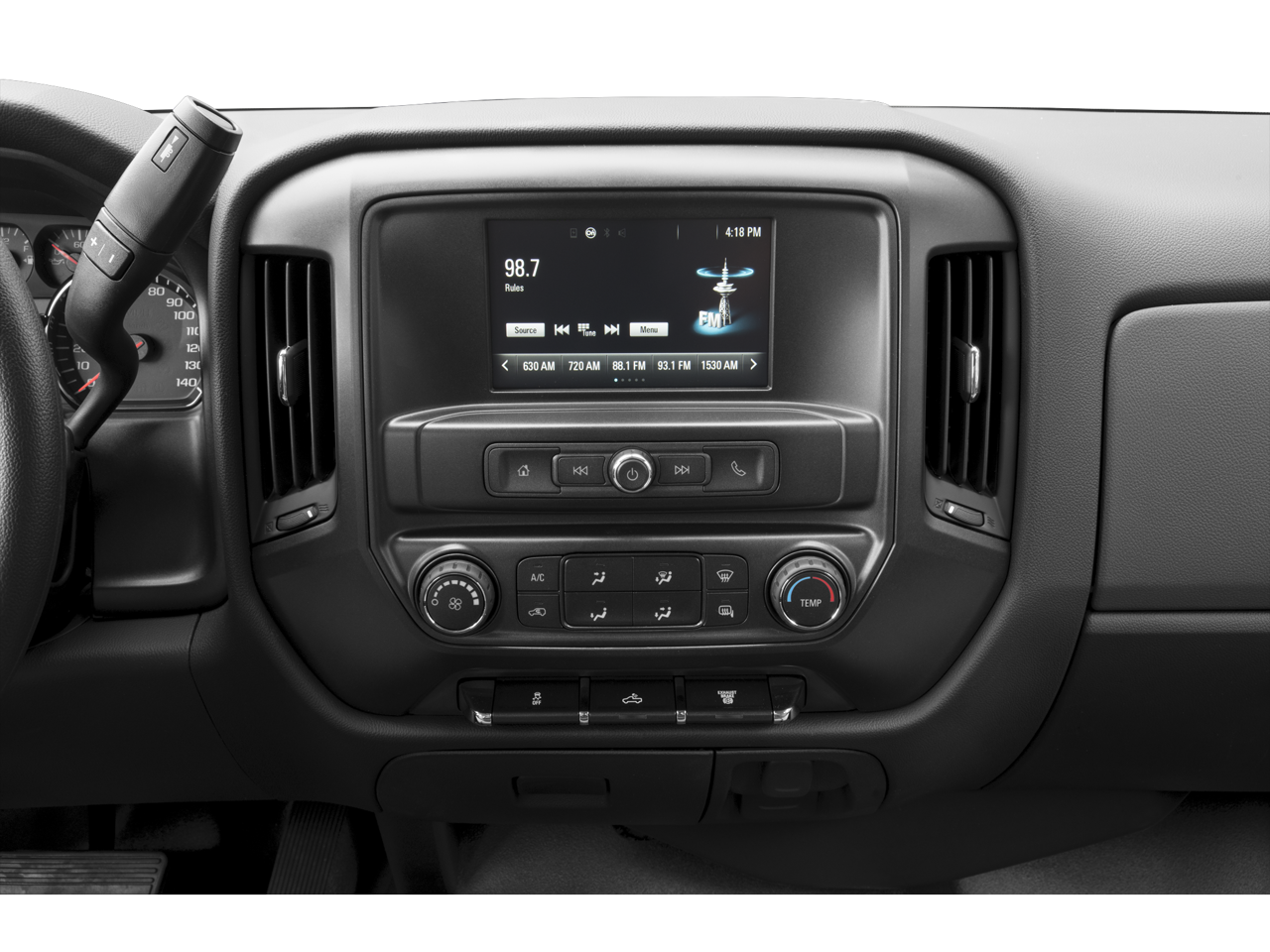

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB ports auxiliary jack and SD card slot (Upgradeable to (IO4) 4.2" diagonal color display radio with Chevrolet MyLink.)
• XM Satellite Radio, delete
• 6-speaker audio system

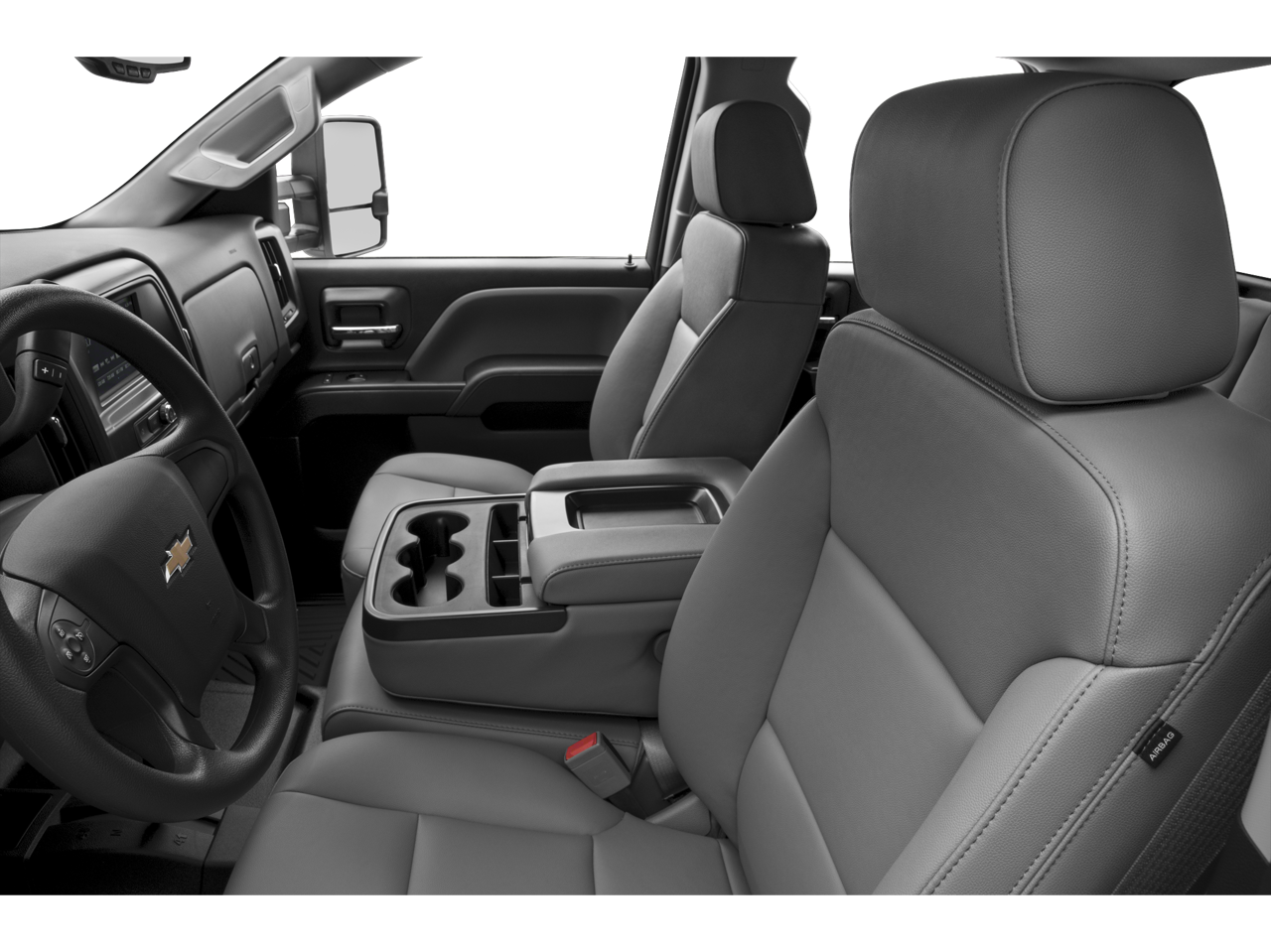

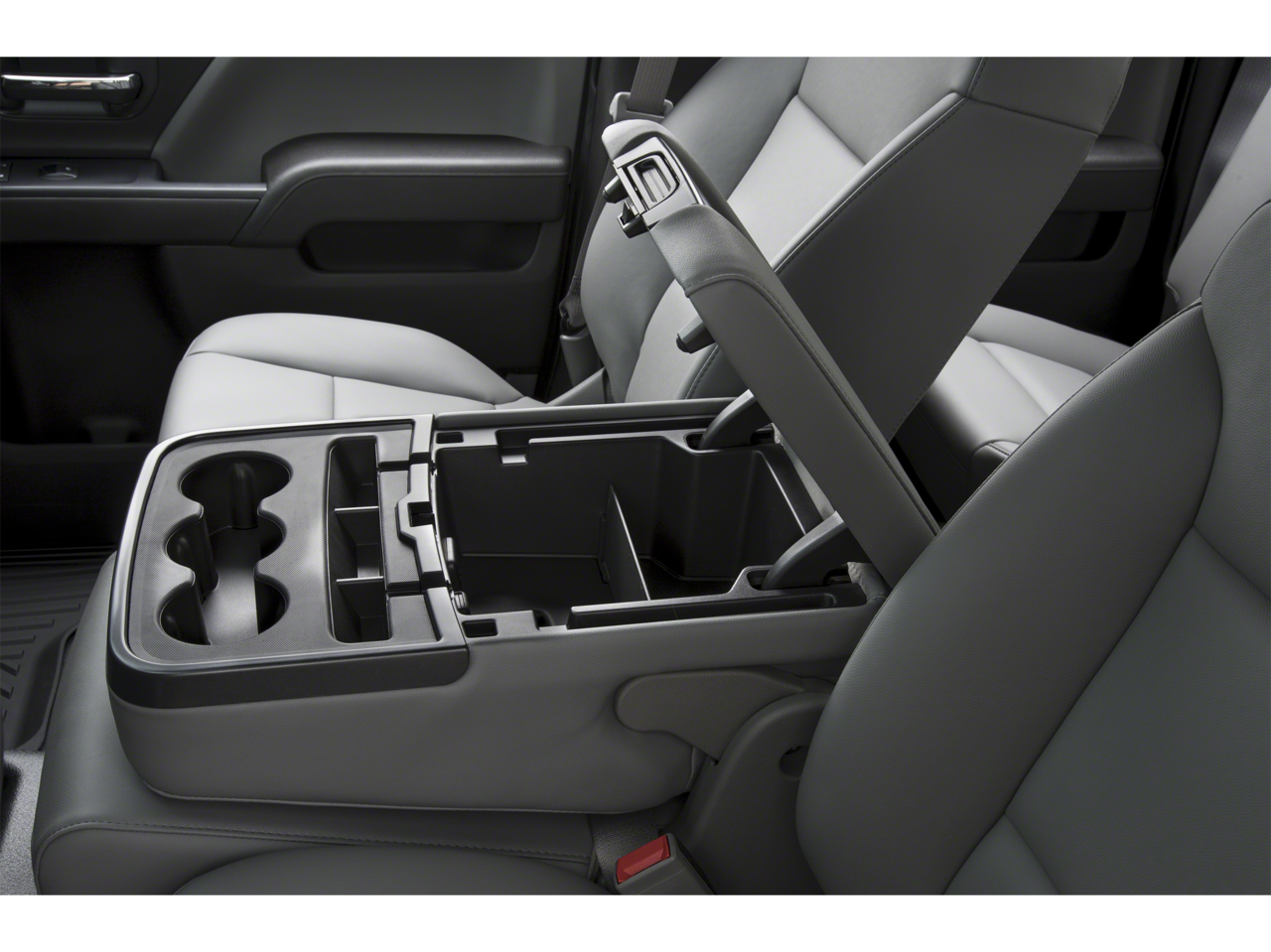

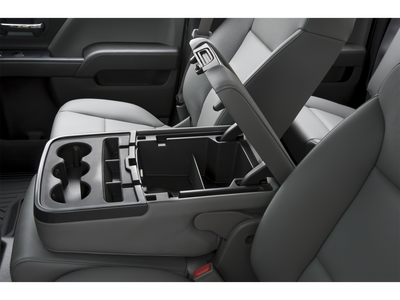

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)
• Seat trim, Cloth

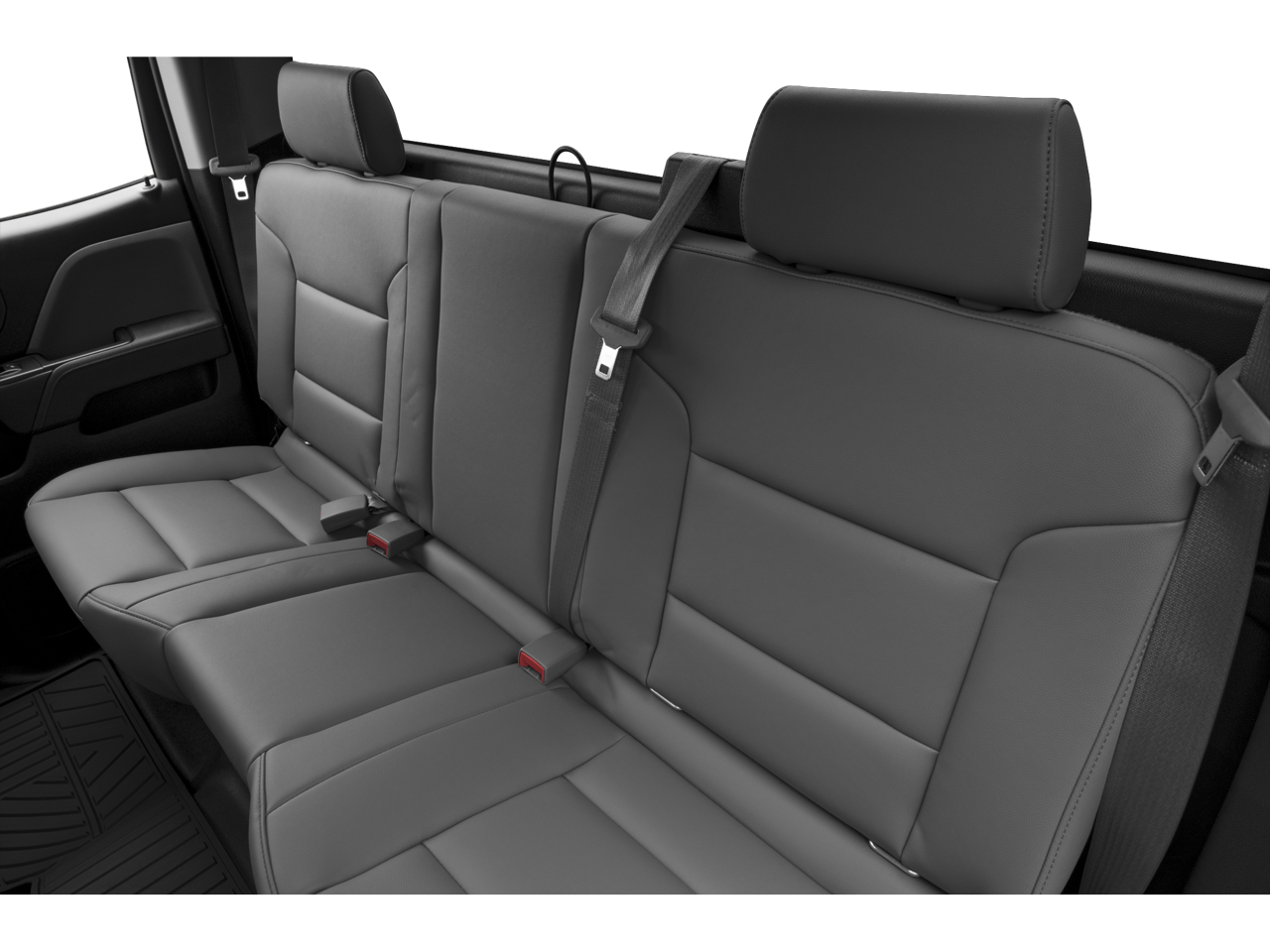

• Seat, rear full-width folding bench, 3-passenger (includes child seat top tether anchor)

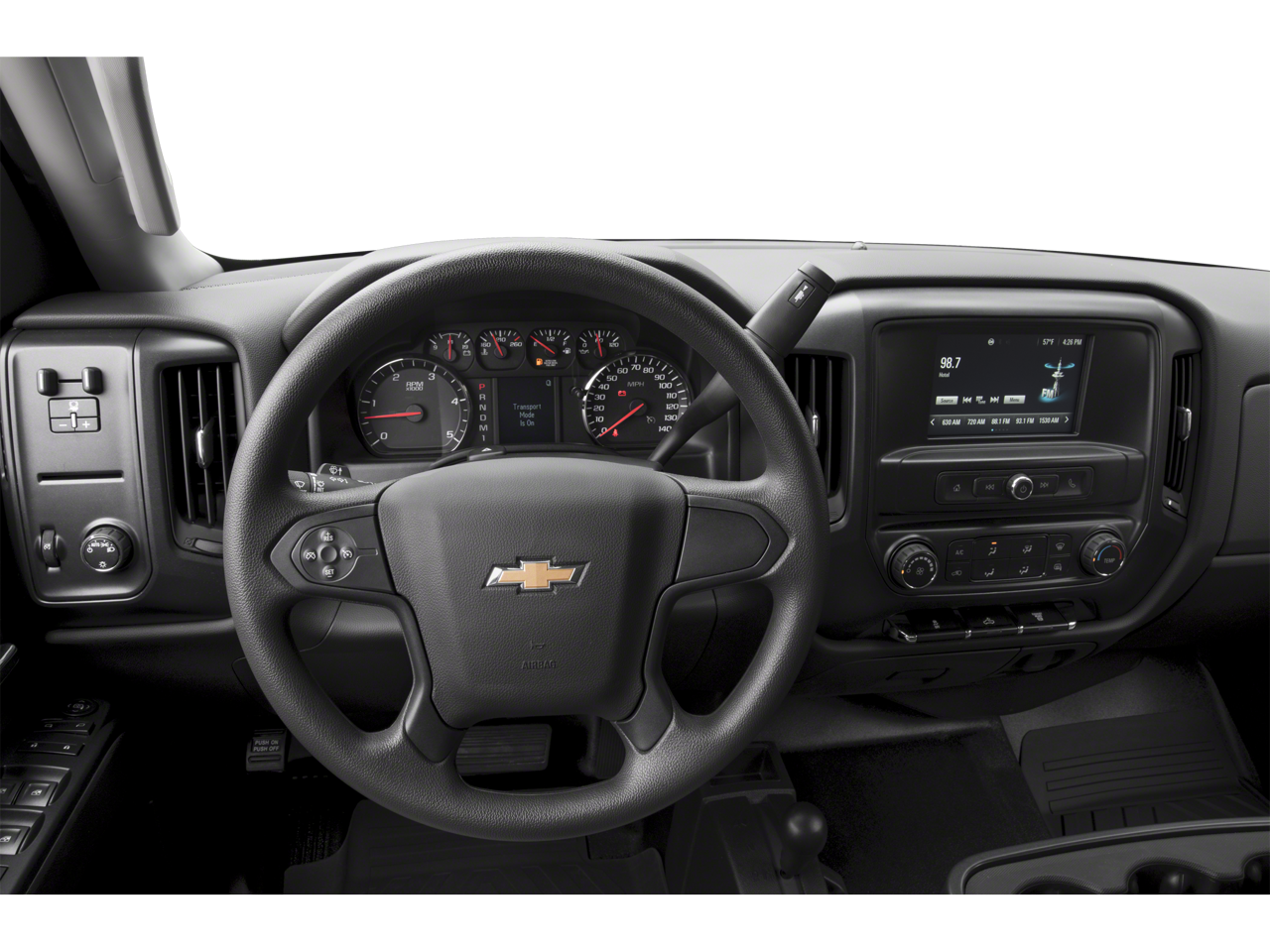

• Steering column, manual Tilt-Wheel
• Steering wheel
• Floor covering, Graphite-colored rubberized-vinyl
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Cruise control, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal passenger-side
• OnStar, delete also deletes driver information center compass.
• Tire Pressure Monitoring System (does not apply to spare tire)

• 2015 Interim Processing Code

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

FLOOR COVERING, COLOR-KEYED CARPETING

• with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• is located at the rear of the pickup box attached to the rear frame cross member

• Preferred Equipment Group 1WT: Frontal Passenger-Side Air Bag Deactivation Switch; Front 40/20/40 Reclining Split-Bench Seat; Floor-Mounted Shifter Transfer Case; Steering Wheel; Power Windows with Driver Express Up and Down
• Heavy-Duty Trailering Equipment
• Heavy-Duty Locking Rear Differential
• Integrated Trailer Brake Controller
• OnStar 6 Months Directions/Connections Plan
• AM/FM Stereo with Chevrolet MyLink
• 3.73 Rear Axle Ratio
• Color-Keyed Carpeting Floor Covering
• Black Camper-Style High-Visibility Outside Mirrors
• Camper and 5th Wheel Trailer Wiring Provisions
• OnStar 4G LTE mobile hotspot internet access
• Brake assist system
• Cruise control with steering wheel mounted controls
• Part-time 4WD

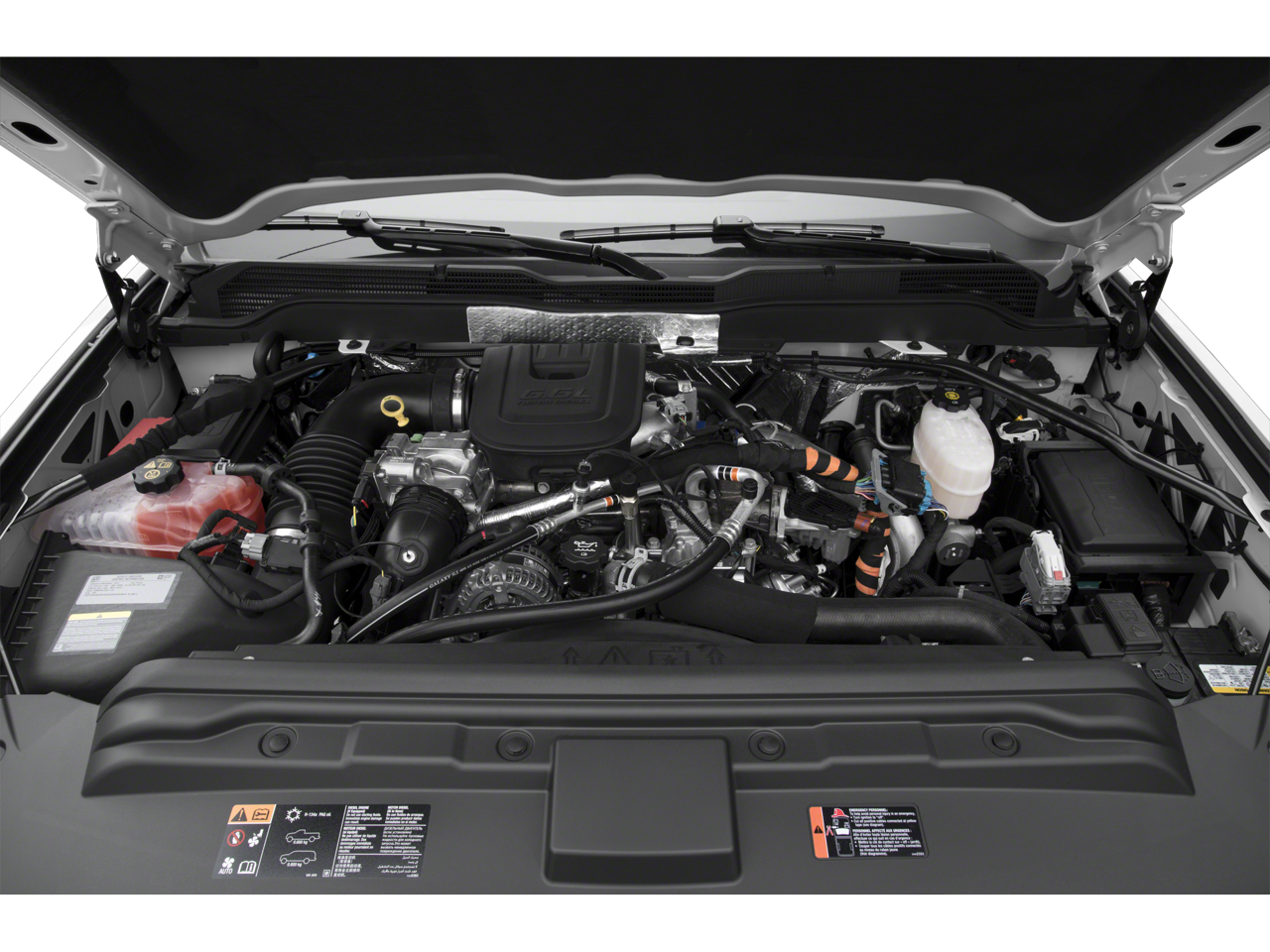

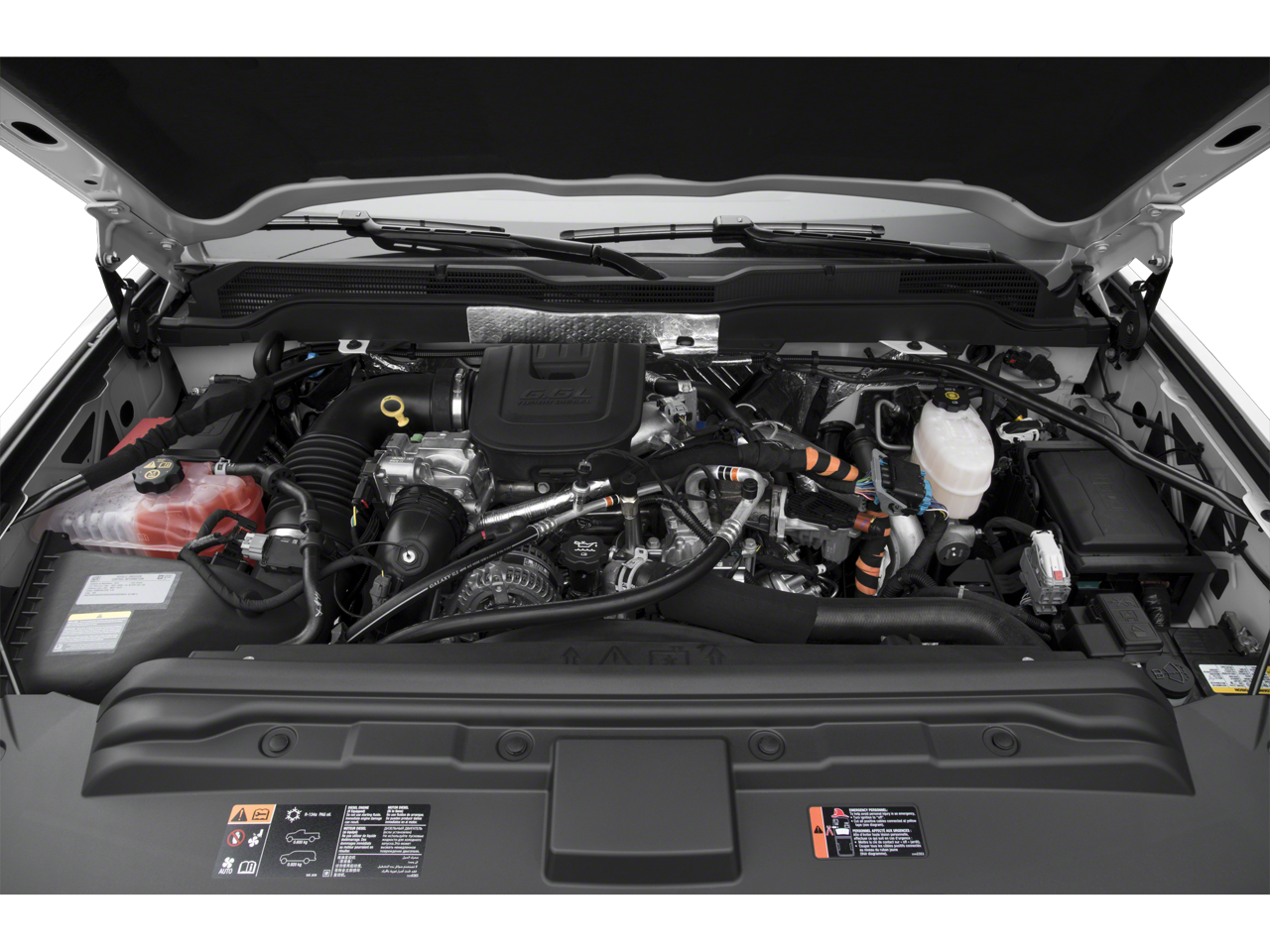

• Duramax 6.6L V-8 direct injection
• intercooled turbo
• diesel
• engine with 397HP
• Duramax 6.6L V-8
• Mechanical
• Wireless audio streaming
• Immobilizer
• OnStar Directions & Connections vehicle tracker
• OnStar Directions & Connections vehicle integrated emergency SOS system
• Bluetooth® handsfree wireless device connectivity
• Smart device app link
• Trailer brake controller
• Trailer sway control
• External memory control
• Internet radio capability
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill start assist
• Manual rear child safety door locks
• Manual tilting steering wheel
• Metallic paint
• Wheel hub covers
• Manual extendable trailer mirrors
• 17 x 7.5-inch front and rear painted steel wheels
• LT245/75SR17 AS BSW front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags
• Cancellable front passenger air bag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Auto-locking doors
• Intercooled turbo
• Allison 6-speed automatic
• Tow/Haul Mode selectable mode transmission
• Cloth rear seat upholstery
• Manual climate control
• Rear under seat climate control ducts
• Sequential shift control
• Automatic
• Projector beam headlights
• Halogen headlights
• Auto on/off headlight control
• Daytime running lights
• Delay-off headlights
• 40-20-40 split-bench front seat
• Driver seat with 4-way directional controls

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3685
• Curb Weight - Rear (lbs): 2670
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3550
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 144.20
• Length, Overall w/o rear bumper (in): 230.00
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.11
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.60
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.53
• Ground Clearance, Rear (in): 9.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.23
• Summary

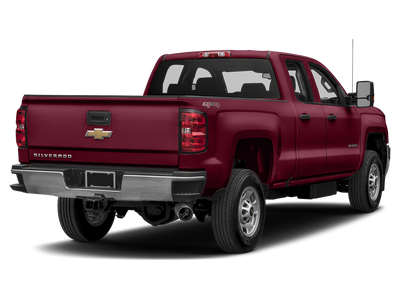

• Vehicle Name: Chevrolet Silverado 2500HD Built After Aug 14
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
